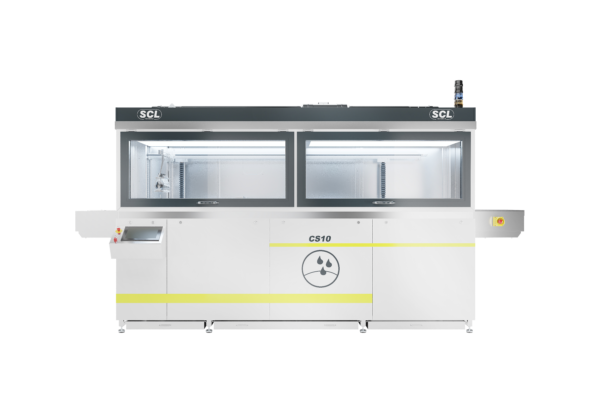

CS 10 VUE 3

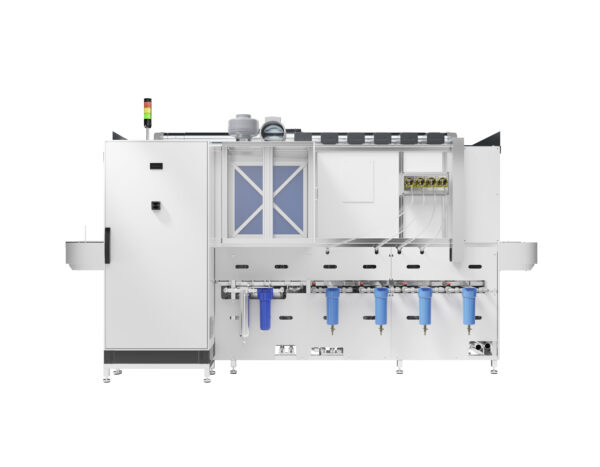

CS 10 VUE 1

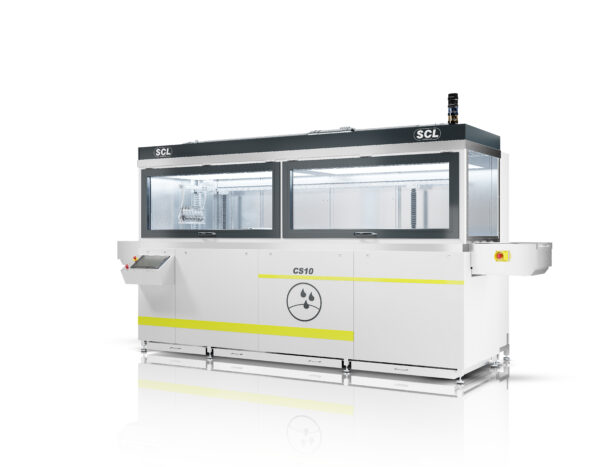

CS 10 VUE 2

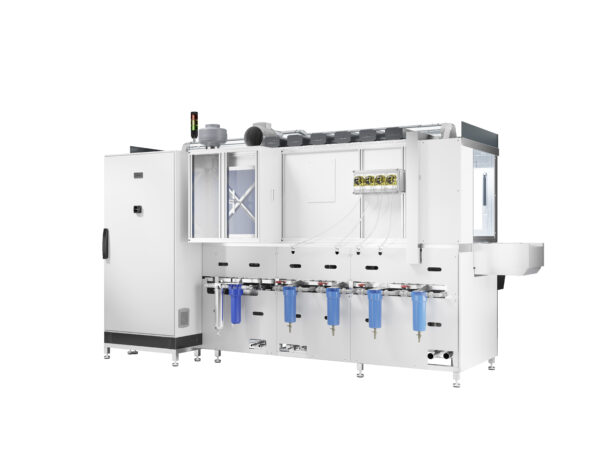

CS 10 VUE 4
CS 10 VUE 3
CS 10 VUE 1
CS 10 VUE 2
CS 10 VUE 4
cleaning rouge Cleaning

CS 10

The fully automated CS 10 is the most reliable Ultra Sonic cleaning machine. Cleaning up to 160 lenses/h, it is a perfect fit for medium and large size labs. Highly flexible, it features seven cleaning tanks and offers different processes. Cleaning lenses after deblocking, cleaning lenses before AR Coating, stripping lenses or tooling. An automatic refilling system provides consistent and stable process control, keeping detergent at the same level and condition. A unique water cascading and filtrating system enables city water savings up to 75%, making the CS 10 an environment-friendly cleaner. This machine can be completed with the following items:
  • Automatic osmosis unit for ultra pure water production
  • Draining tank with lift pump
  • Ergonomic preparation/control station
  • Lens-holders and rack for 12 or 14 lenses


Caractéristiques et avantages

  • Ultrasonic cleaning anywhere in the process
  • 1 single zone for cleaning and hard coating (ISO6 coating chamber)
  • 1 IN and 1 OUT automatic conveyors (less contamination of process zones. In and out buffers)
  • Automatic detergent and water refilling (easy maintenance, stable process and no production stop)
  • Customisable machines : cleaning line with 7, 8 or 9 tanks (available options to fit customer’s needs)
  • Designed for heavy-duty use (very limited downtime)
  • Remote connection to SCL service team (easier and faster diagnosis. Upgrading possibility)
  • Optimized water and energy consumption (sustainable process)
  • Optimized water and energy consumption (sustainable process)

Données techniques

  • Machine in 1 part
  • Dimensions 405 cm x 162 cm x 205 cm
  • Weight ~ 800 kg
  • Electricity 11,8 ou 20,2 kW / 400 V (3Ph + N + Gnd)
  • Compressed air No
  • Flow machine Left to right or from right to left
  • Compliances CE and UL

Capacité de production

  • Cycle time ~ 5 minutes
  • Lenses / cycle 12 → 14
  • Lenses / hour 120 → 140
  • Type of lenses All types Ø 40 to 80 mm
